Gibraltar

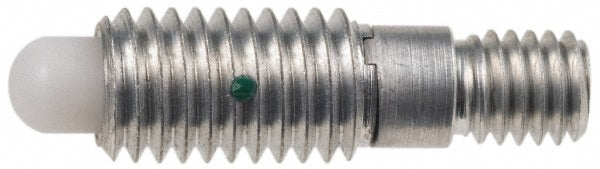

Spring Plunger - Gibraltar 34258SS
MFR# 34258SS
$27.43List $34.42
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34258SS is a spring plunger.
Specifications
Body length0.6250
Final end force lb2.50
Head height in15/64
Initial end force lb0.50
Knob styleThreaded Stud (without Knob)
Length under head shoulder0.1250
Locking elementYes
Maximum plunger diameter0.1440
Plunger diameter tolerance+0.0010
Plunger length1.0620
Plunger projection in1/8
Plunger typeNon-Locking
Stud thread size10-32
Thread length in1/2
