Gibraltar

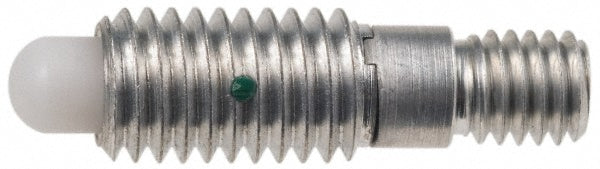

Spring Plunger - Gibraltar 34259
MFR# 34259
$25.62List $32.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34259 is a spring plunger.
Specifications
Body length0.8125
Final end force lb3.00
Head height in11/32
Initial end force lb0.75
Knob styleThreaded Stud (without Knob)
Length under head shoulder0.1880
Locking elementYes
Maximum plunger diameter0.1790
Plunger diameter tolerance+0.0010
Plunger length1.4380
Plunger projection in3/16
Plunger typeNon-Locking
Stud thread size1/4-20
Thread length in5/8
