Gibraltar

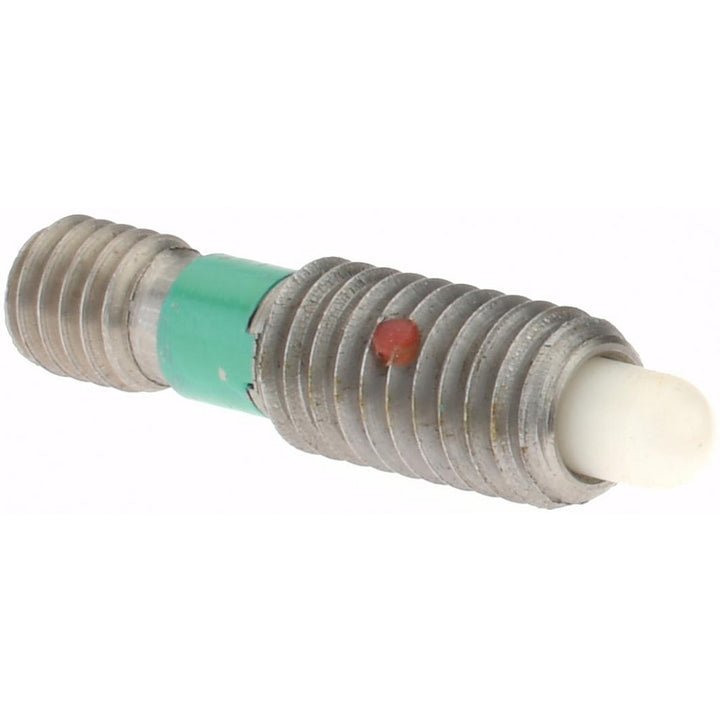

3/8-16 in Spring Plunger - Gibraltar 34260SS
MFR# 34260SS
$32.23List $40.45
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 34260SS is a 3/8-16 in stainless steel spring plunger.
Specifications
Body length0.9688
Final end force4lb
Final end force lb4.00
FinishZinc-Plated
Head height in13/32
Initial end force0.75lb
Initial end force lb0.75
Knob styleThreaded Stud (without Knob)
Length under head shoulder0.2190
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.2160
Plunger diameter tolerance+0.0010
Plunger length1.6910
Plunger projection in7/32
Plunger typeNon-Locking
Stud thread size5/16-18
Thread length in3/4
Thread size3/8-16 in
