Gibraltar
M5 x 0.80 Spring Plunger - Gibraltar 67010G
MFR# 67010G
$9.01List $11.31
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

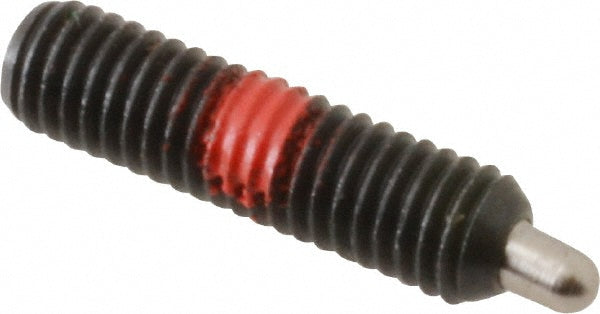

The Gibraltar 67010G is a M5 x 0.80 steel spring plunger.
Specifications
Body length19.00
Body materialSteel
Final end force kg1.22
Final end force lb2.70
FinishBlack
Hex size (mm)2.50
Initial end force kg0.59
Initial end force lb1.30
Locking elementNo
Maximum plunger diameter (mm)2.36
Nose materialSteel
Plunger length (mm)19.00
Plunger projection (mm)3.00
Thread length (mm)19.00
Thread sizeM5 x 0.80
Tolerance (mm)+0.00
