M12 x 1.75 Spring Plunger - Gibraltar 67085G
MFR# 67085G
$26.01List $32.65
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

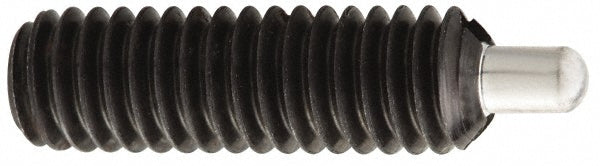

The Gibraltar 67085G is a M12 x 1.75 steel spring plunger.
Specifications
Body length32.00
Body materialSteel
Final end force kg7.83
Final end force lb17.26
FinishBlack
Hex size (mm)6.00
Initial end force kg2.97
Initial end force lb6.55
Locking elementNo
Maximum plunger diameter (mm)6.30
Nose materialDelrin
Plunger length (mm)32.00
Plunger projection (mm)6.00
Thread length (mm)32.00
Thread sizeM12 x 1.75
Tolerance (mm)+0.00
