Gibraltar

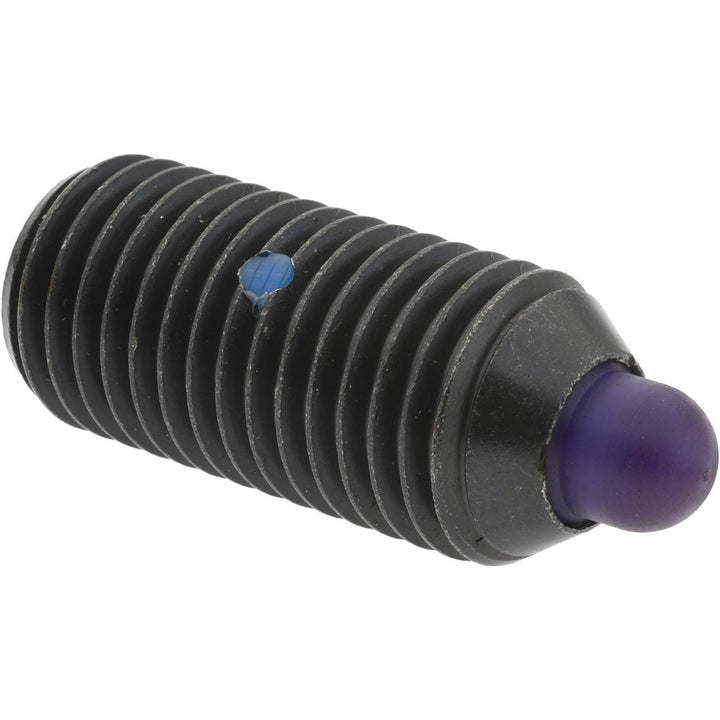

M20 x 2.50 Spring Plunger - Gibraltar 67087G
MFR# 67087G
$15.23List $19.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 67087G is a M20 x 2.50 steel spring plunger.
Specifications
Body length44.00
Body materialSteel
Final end force kg16.95
Final end force lb37.37
FinishBlack
Hex size (mm)10.00
Initial end force kg3.05
Initial end force lb6.72
Locking elementNo
Maximum plunger diameter (mm)9.50
Nose materialDelrin
Plunger length (mm)44.00
Plunger projection (mm)8.00
Thread length (mm)44.00
Thread sizeM20 x 2.50
Tolerance (mm)+0.00
