Gibraltar

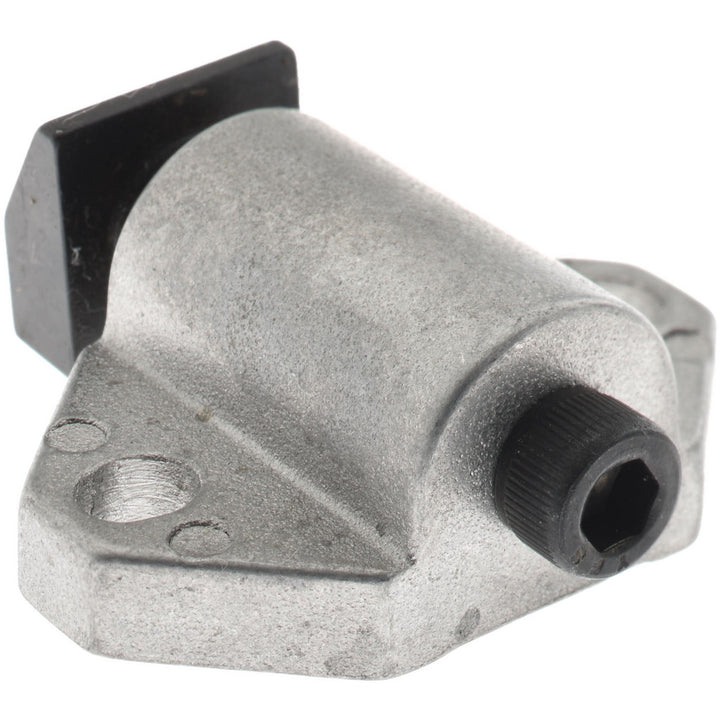

Spring Plunger - Gibraltar 855060-G
MFR# 855060-G
$8.79
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar 855060-G is a aluminum spring plunger.
Specifications
Base thickness in1/4; 0.25in
Body length1in; 1.0000
Body materialAluminum
Body width1.5000
Distance between button to bottom edge0.3125in
Distance between mount hole centers in1-1/8
Distance between mount hole edge in7/8
Distance betw button bottom edge0.3125
Middle end force kg14.00
Mounting slot length0.193in
Mounting slot width0.193in; 0.1930
Stop head height in5/8
Stop head width in0.625in
Stroke length in3/16
Tang profileTangless
