Gibraltar

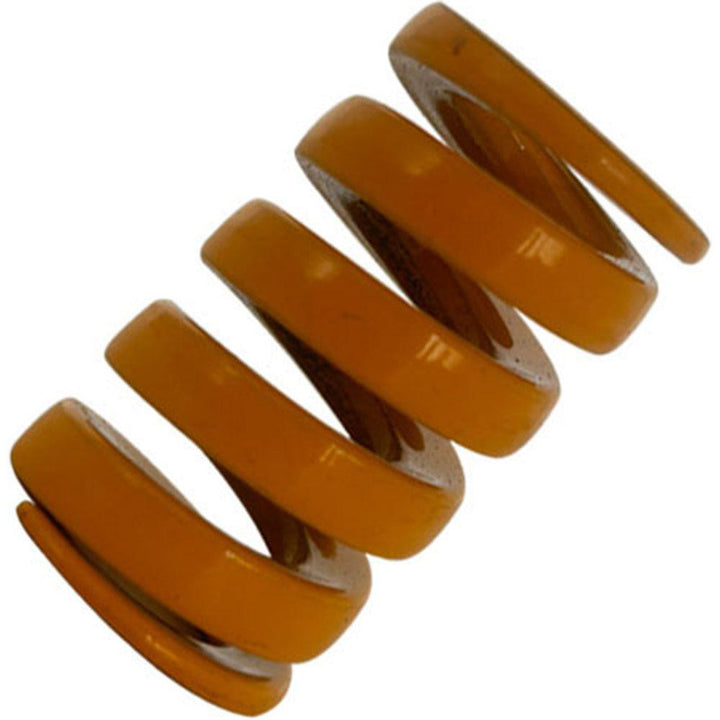

Die Spring - Gibraltar DCIB12.5-32
MFR# DCIB12.5-32
$2.33List $2.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB12.5-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.5
Duty ratingExtra Heavy-Duty
Free length in1-1/4
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5000
Maximum deflection load lb121.00
Maximum deflection load n538.45
Rod diameter in9/32
Spring rate242.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.4921
Wire shapeTrapezoidal
