Gibraltar

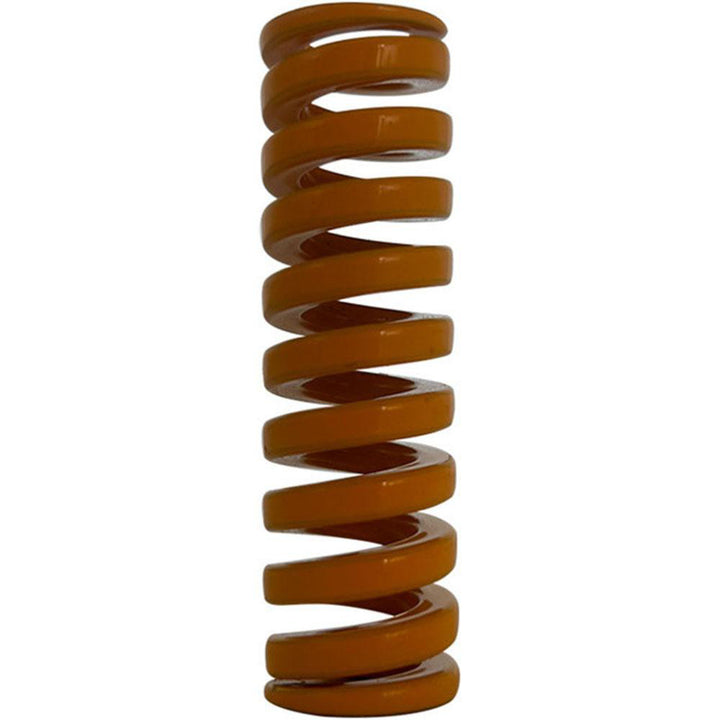

Die Spring - Gibraltar DCIB12.5-64
MFR# DCIB12.5-64
$3.27List $4.10
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB12.5-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.94
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9400
Maximum deflection load lb107.00
Maximum deflection load n476.15
Rod diameter in9/32
Spring rate114.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9213
Wire shapeTrapezoidal
