Gibraltar

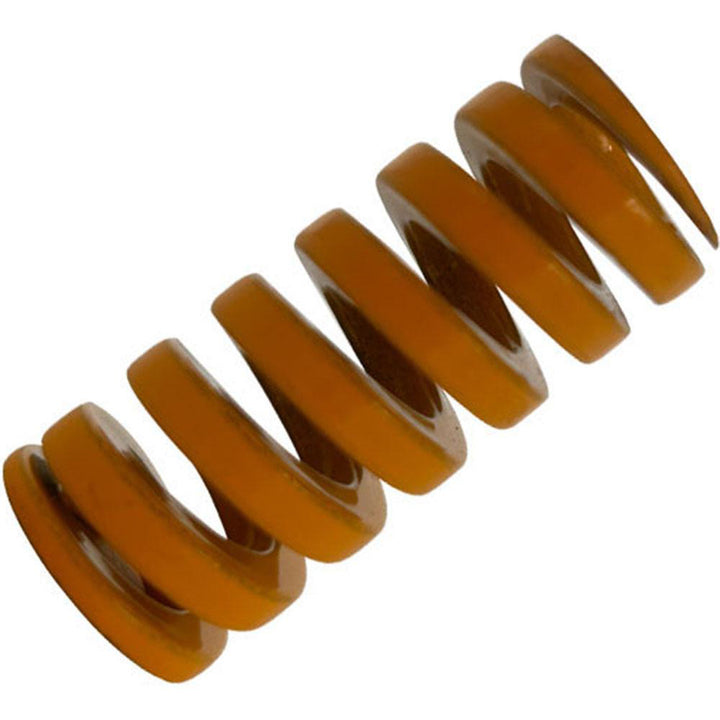

Die Spring - Gibraltar DCIB16-44
MFR# DCIB16-44
$3.28List $4.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB16-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.55
Duty ratingExtra Heavy-Duty
Free length in1-3/4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5500
Maximum deflection load lb221.00
Maximum deflection load n983.45
Rod diameter in11/32
Spring rate404.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5650
Wire shapeTrapezoidal
