Gibraltar

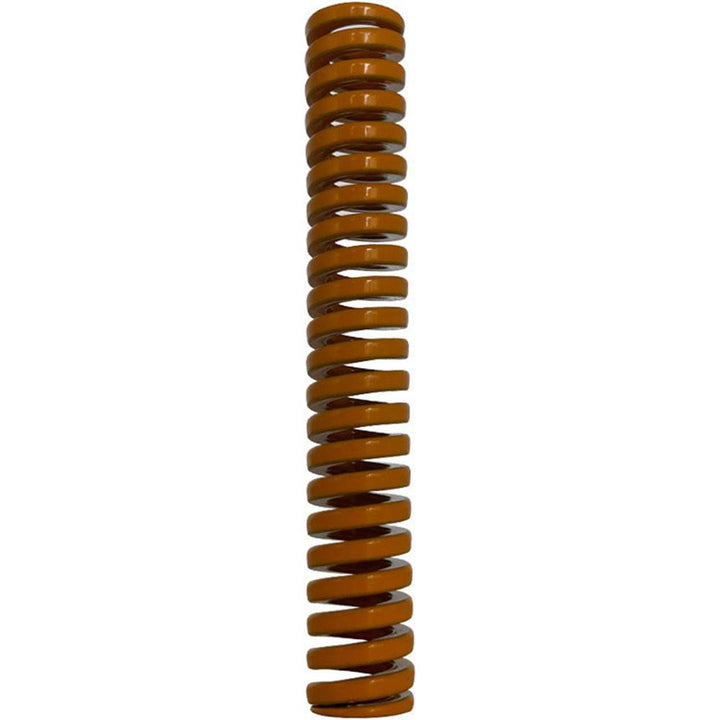

Die Spring - Gibraltar DCIB20-102
MFR# DCIB20-102
$6.46List $8.11
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB20-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load1.08
Duty ratingExtra Heavy-Duty
Free length in4
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.0800
Maximum deflection load lb420.00
Maximum deflection load n1869.00
Rod diameter in3/8
Spring rate389.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.0630
Wire shapeTrapezoidal
