Gibraltar

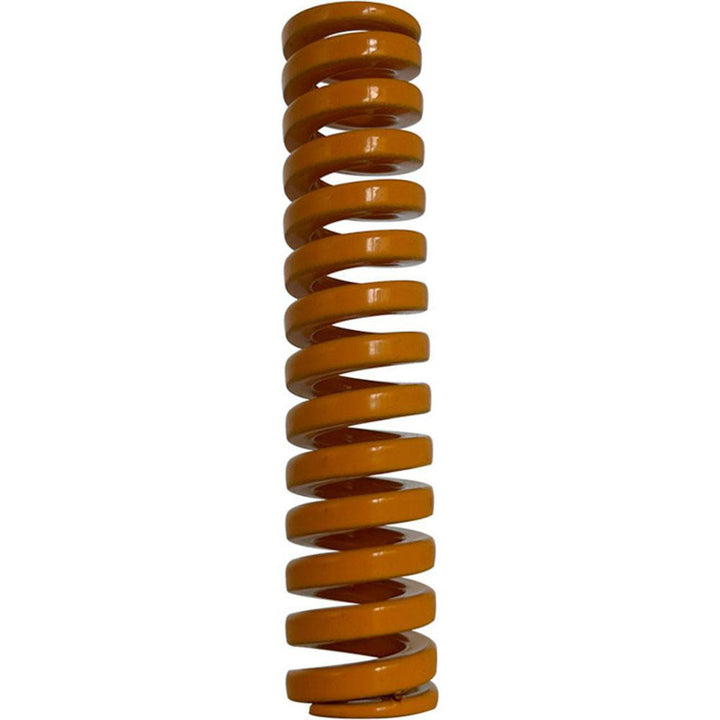

Die Spring - Gibraltar DCIB20-89
MFR# DCIB20-89
$5.72List $7.18
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB20-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.93
Duty ratingExtra Heavy-Duty
Free length in3-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9300
Maximum deflection load lb416.00
Maximum deflection load n1851.20
Rod diameter in3/8
Spring rate448.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9252
Wire shapeTrapezoidal
