Gibraltar

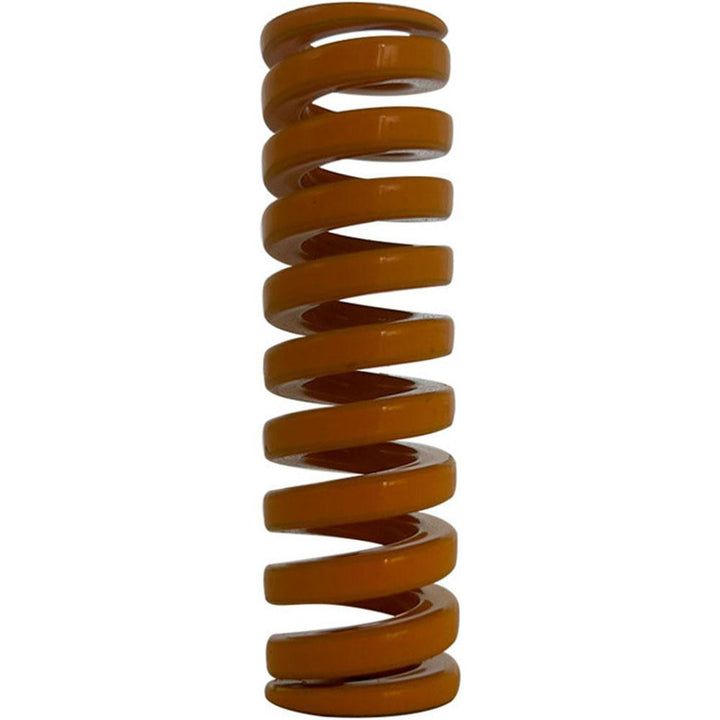

Die Spring - Gibraltar DCIB25-64
MFR# DCIB25-64
$7.06List $8.86
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB25-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.79
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7900
Maximum deflection load lb698.00
Maximum deflection load n3106.10
Rod diameter in1/2
Spring rate886.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7677
Wire shapeTrapezoidal
