Gibraltar

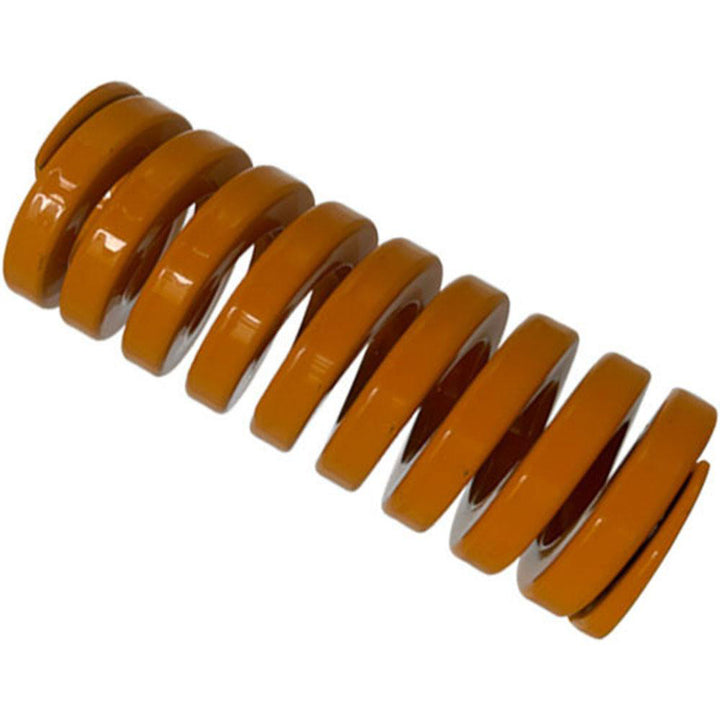

Die Spring - Gibraltar DCIB50-102
MFR# DCIB50-102
$30.15List $37.85
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB50-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load1.37
Duty ratingExtra Heavy-Duty
Free length in4
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3700
Maximum deflection load lb3034.00
Maximum deflection load n13501.30
Rod diameter in1
Spring rate2221.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3504
Wire shapeTrapezoidal
