Gibraltar

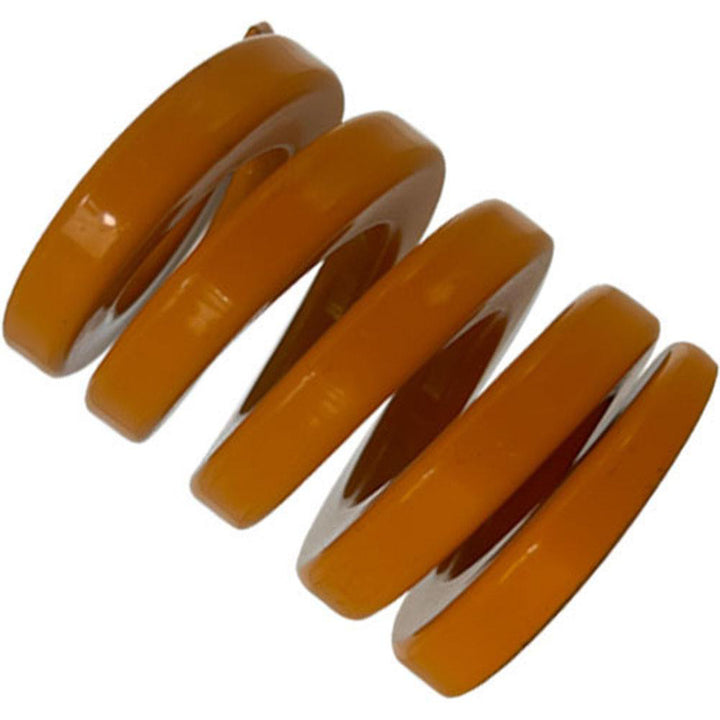

Die Spring - Gibraltar DCIB50-64
MFR# DCIB50-64
$23.74List $29.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB50-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.85
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8500
Maximum deflection load lb3245.00
Maximum deflection load n14440.25
Rod diameter in1
Spring rate3834.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8268
Wire shapeTrapezoidal
