Gibraltar

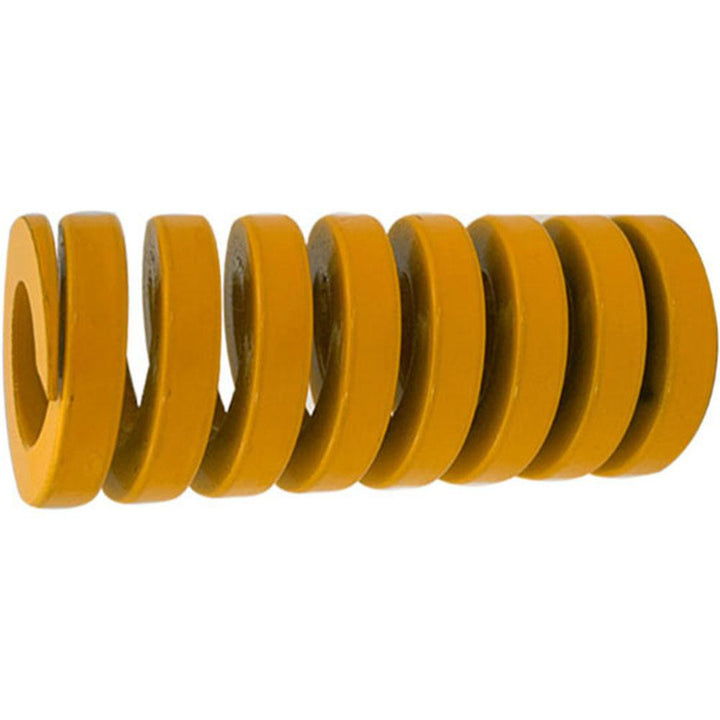

Die Spring - Gibraltar DCIB50-89
MFR# DCIB50-89
$27.93List $35.06
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB50-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load1.17
Duty ratingExtra Heavy-Duty
Free length in3-1/2
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.1700
Maximum deflection load lb3023.00
Maximum deflection load n13452.35
Rod diameter in1
Spring rate2576.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.1693
Wire shapeTrapezoidal
