Gibraltar

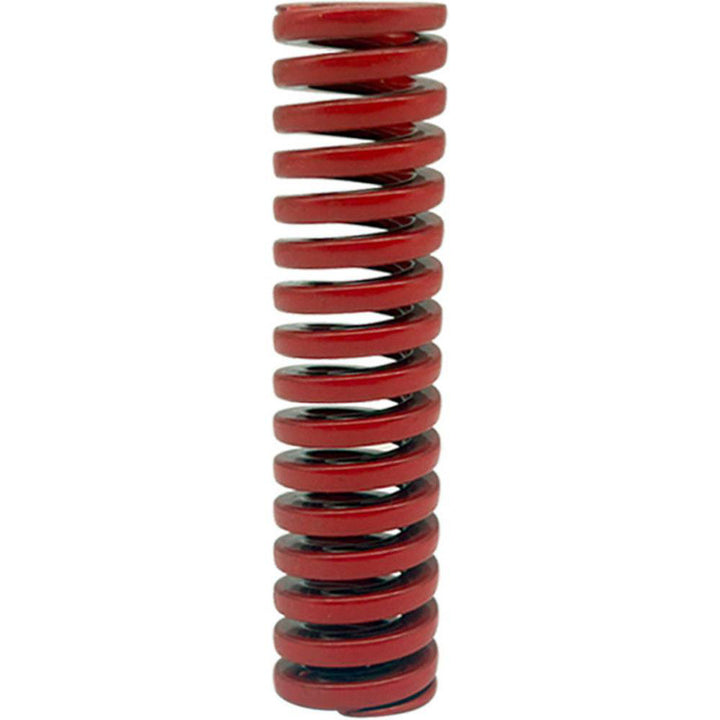

Die Spring - Gibraltar DCIH12.5-89
MFR# DCIH12.5-89
$3.58List $4.50
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH12.5-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.65
Duty ratingHeavy-Duty
Free length in3-1/2
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.6500
Maximum deflection load lb104.00
Maximum deflection load n462.80
Rod diameter in9/32
Spring rate63.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.6496
Wire shapeTrapezoidal
