Gibraltar

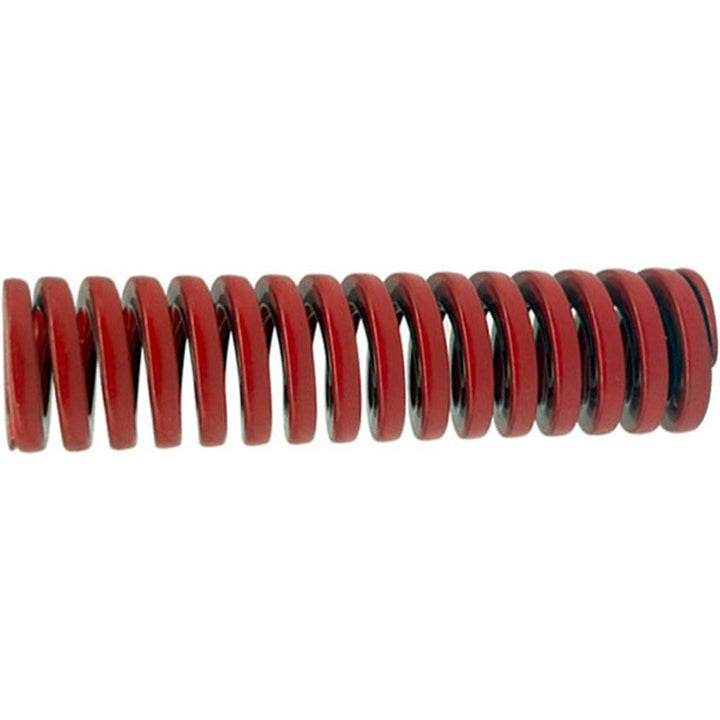

Die Spring - Gibraltar DCIH16-76
MFR# DCIH16-76
$3.76List $4.72
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH16-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.34
Duty ratingHeavy-Duty
Free length in3
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3400
Maximum deflection load lb197.00
Maximum deflection load n876.65
Rod diameter in11/32
Spring rate147.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3504
Wire shapeTrapezoidal
