Gibraltar

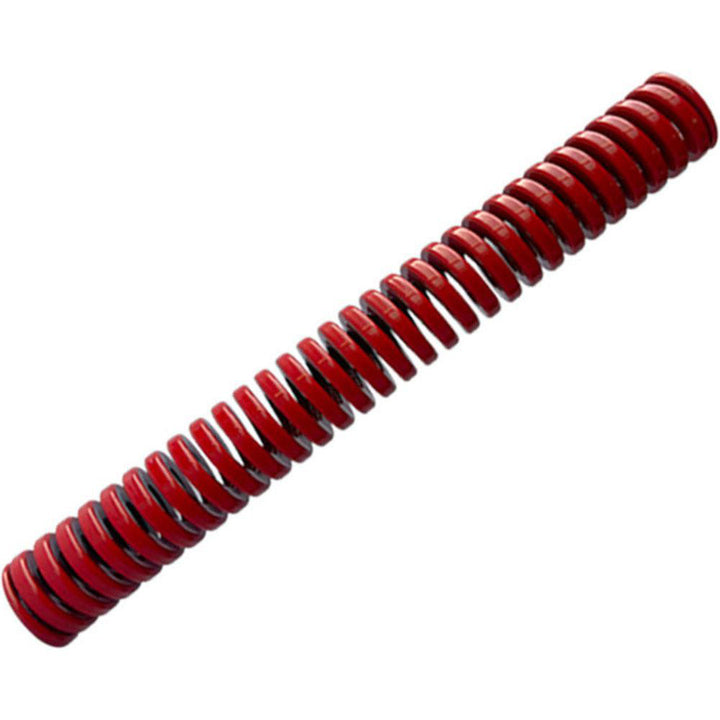

Die Spring - Gibraltar DCIH20-102
MFR# DCIH20-102
$6.09List $7.65
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH20-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.33
Duty ratingHeavy-Duty
Free length in4
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3300
Maximum deflection load lb354.00
Maximum deflection load n1575.30
Rod diameter in3/8
Spring rate266.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3150
Wire shapeTrapezoidal
