Gibraltar

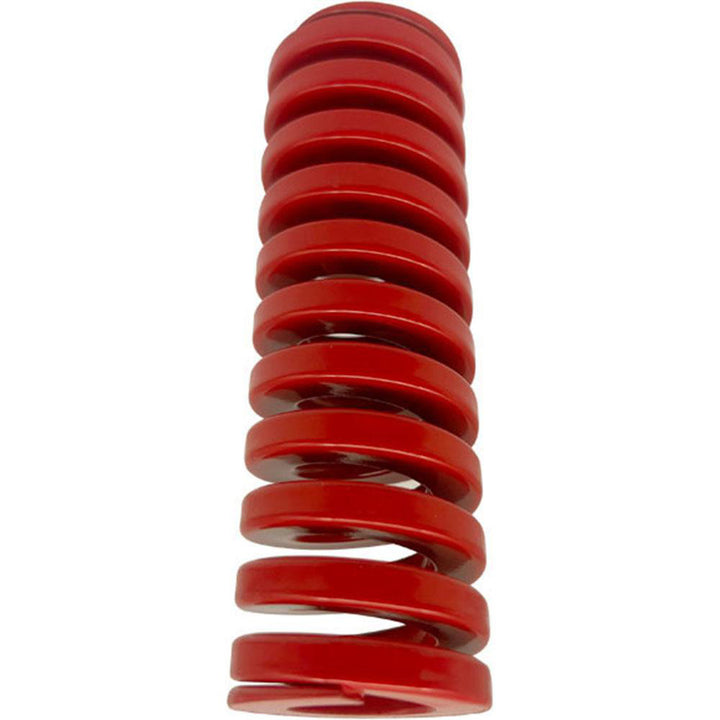

Die Spring - Gibraltar DCIH20-114
MFR# DCIH20-114
$7.21List $9.05
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH20-114 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.56
Duty ratingHeavy-Duty
Free length in4-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.5600
Maximum deflection load lb373.00
Maximum deflection load n1659.85
Rod diameter in3/8
Spring rate239.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.5315
Wire shapeTrapezoidal
