Gibraltar
Die Spring - Gibraltar DCIH20-127
MFR# DCIH20-127
$7.98List $10.02
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

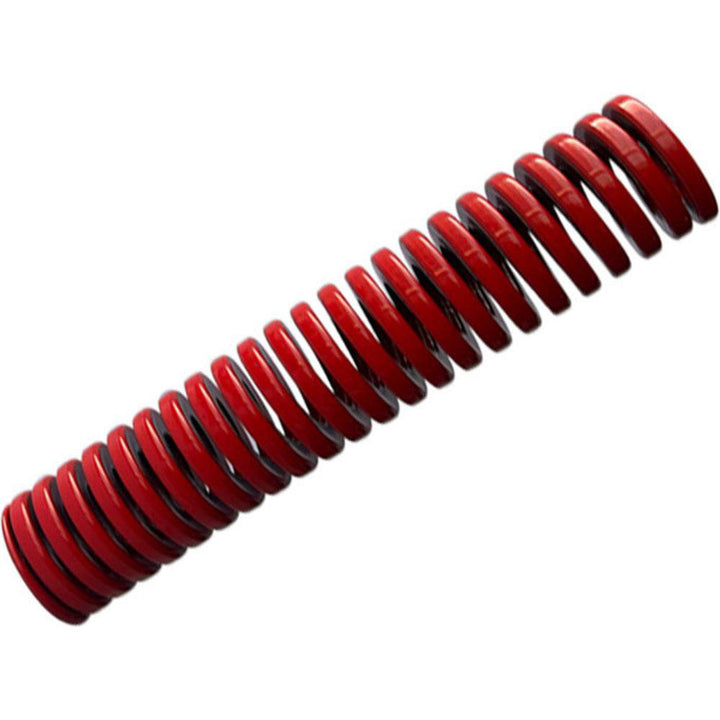

The Gibraltar DCIH20-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.69
Duty ratingHeavy-Duty
Free length in5
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.6900
Maximum deflection load lb359.00
Maximum deflection load n1597.55
Rod diameter in3/8
Spring rate213.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.6850
Wire shapeTrapezoidal
