Gibraltar

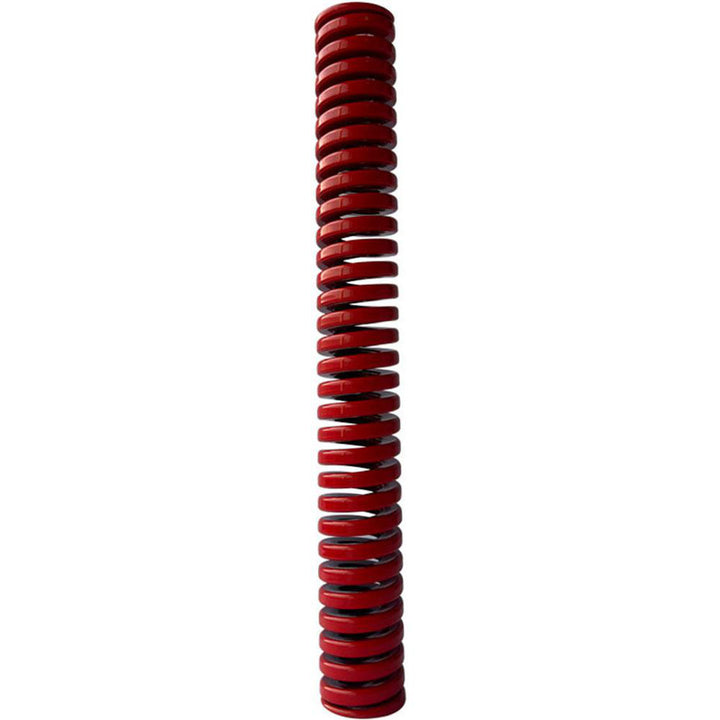

Die Spring - Gibraltar DCIH25-203
MFR# DCIH25-203
$13.55List $17.01
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH25-203 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load2.92
Duty ratingHeavy-Duty
Free length in8
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.9200
Maximum deflection load lb658.00
Maximum deflection load n2928.10
Rod diameter in1/2
Spring rate225.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.9291
Wire shapeTrapezoidal
