Gibraltar

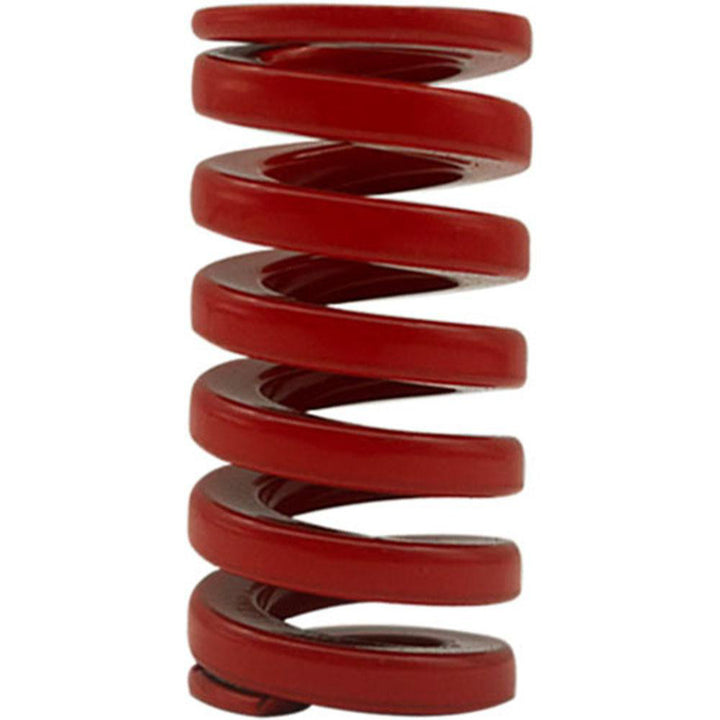

Die Spring - Gibraltar DCIH25-38
MFR# DCIH25-38
$4.42List $5.54
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH25-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.45
Duty ratingHeavy-Duty
Free length in1-1/2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.4500
Maximum deflection load lb562.00
Maximum deflection load n2500.90
Rod diameter in1/2
Spring rate1253.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.4528
Wire shapeTrapezoidal
