Gibraltar

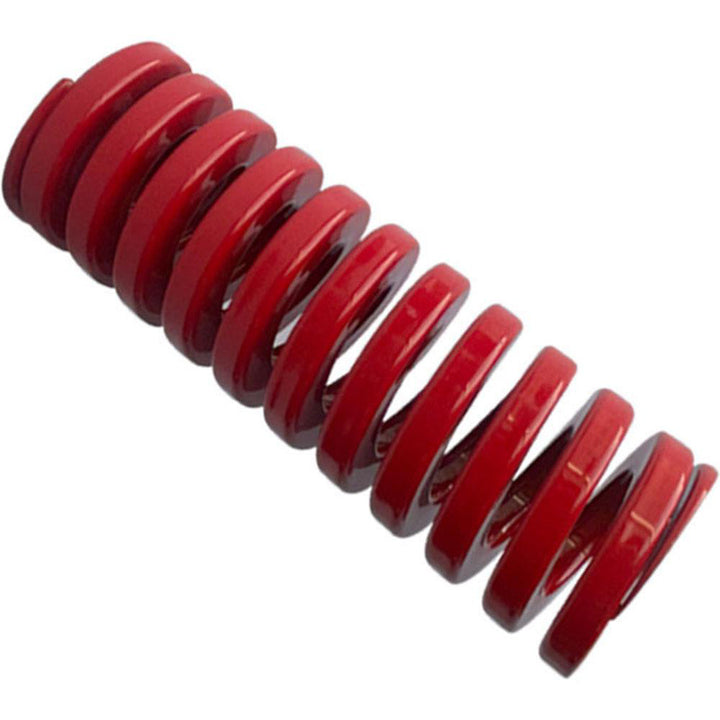

Die Spring - Gibraltar DCIH32-102
MFR# DCIH32-102
$9.68List $12.16
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH32-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.34
Duty ratingHeavy-Duty
Free length in4
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3400
Maximum deflection load lb948.00
Maximum deflection load n4218.60
Rod diameter in5/8
Spring rate706.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3268
Wire shapeTrapezoidal
