Gibraltar

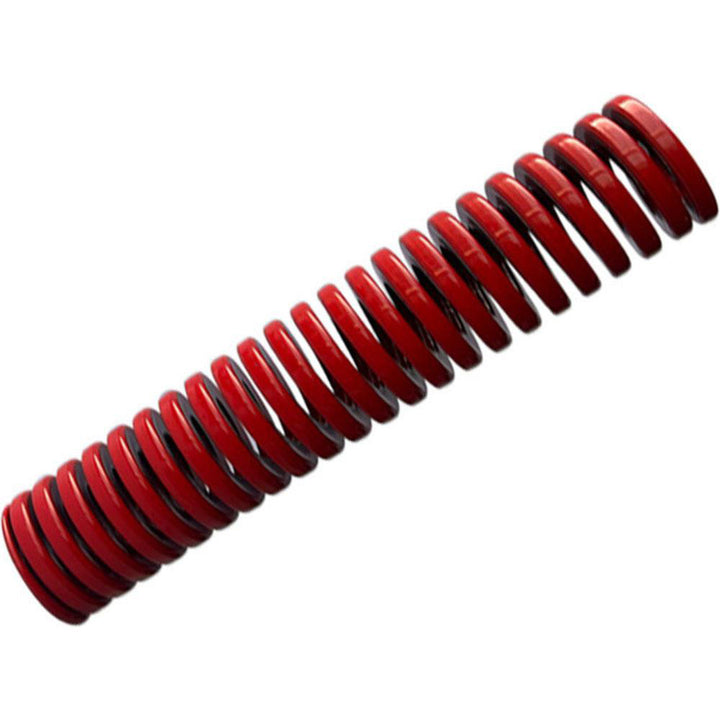

Die Spring - Gibraltar DCIH32-152
MFR# DCIH32-152
$14.52List $18.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH32-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load2.05
Duty ratingHeavy-Duty
Free length in6
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.0500
Maximum deflection load lb957.00
Maximum deflection load n4258.65
Rod diameter in5/8
Spring rate467.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.0669
Wire shapeTrapezoidal
