Gibraltar

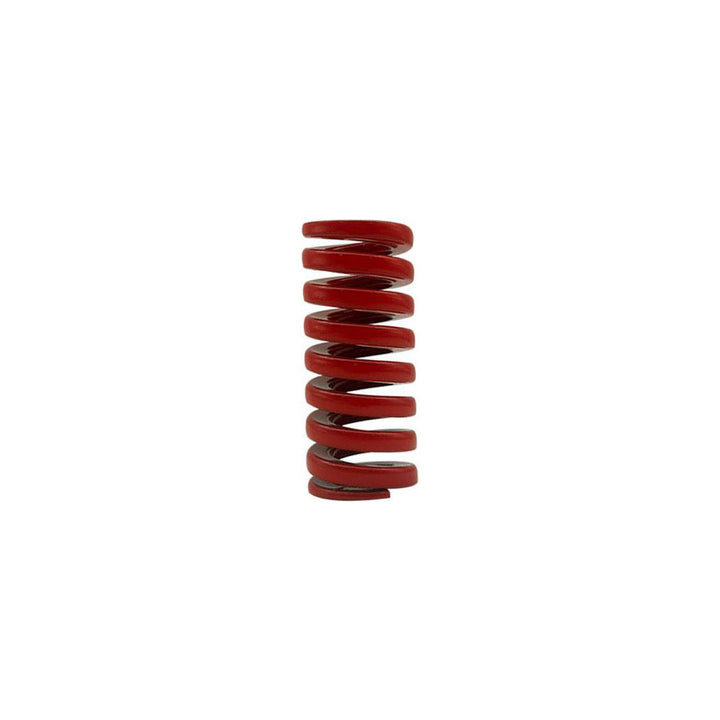

Die Spring - Gibraltar DCIH32-44
MFR# DCIH32-44
$6.17List $7.75
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH32-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.55
Duty ratingHeavy-Duty
Free length in1-3/4
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5500
Maximum deflection load lb978.00
Maximum deflection load n4352.10
Rod diameter in5/8
Spring rate1787.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5650
Wire shapeTrapezoidal
