Gibraltar

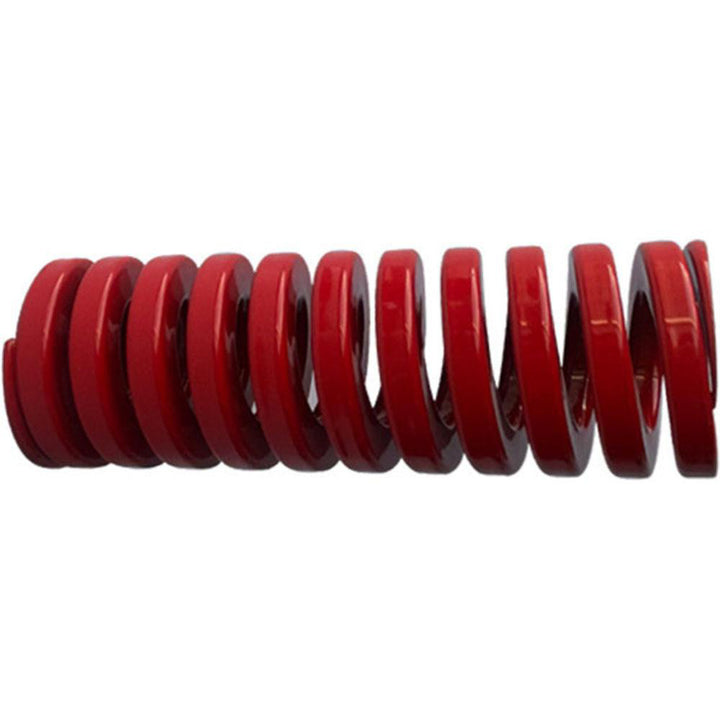

Die Spring - Gibraltar DCIH40-102
MFR# DCIH40-102
$14.43List $18.11
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH40-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.38
Duty ratingHeavy-Duty
Free length in4
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3800
Maximum deflection load lb1344.00
Maximum deflection load n5980.80
Rod diameter in3/4
Spring rate973.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3661
Wire shapeTrapezoidal
