Gibraltar

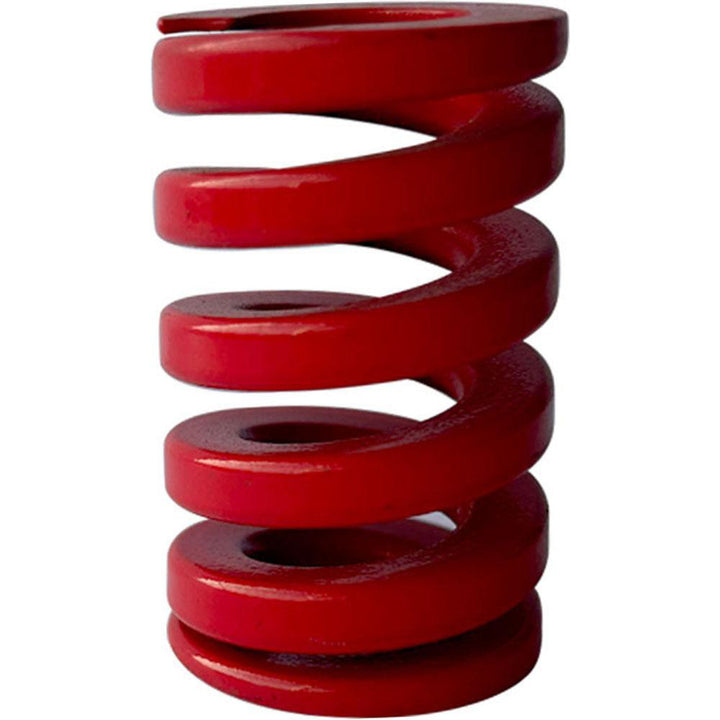

Die Spring - Gibraltar DCIH40-51
MFR# DCIH40-51
$9.12List $11.45
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH40-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.66
Duty ratingHeavy-Duty
Free length in2
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6600
Maximum deflection load lb1404.00
Maximum deflection load n6247.80
Rod diameter in3/4
Spring rate2122.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6535
Wire shapeTrapezoidal
