Gibraltar

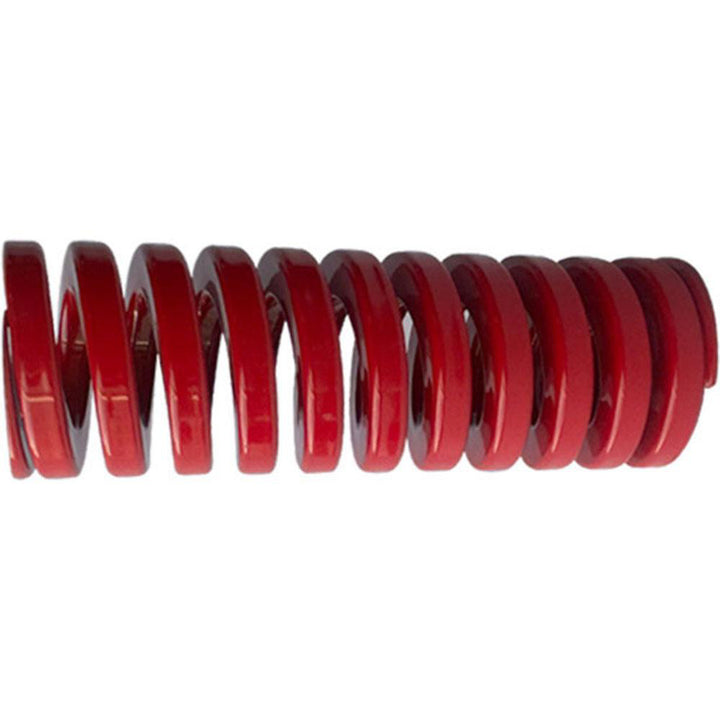

Die Spring - Gibraltar DCIH50-102
MFR# DCIH50-102
$22.31List $28.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH50-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.44
Duty ratingHeavy-Duty
Free length in4
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.4400
Maximum deflection load lb2020.00
Maximum deflection load n8989.00
Rod diameter in1
Spring rate1398.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.4291
Wire shapeTrapezoidal
