Gibraltar
Die Spring - Gibraltar DCIL10-25
MFR# DCIL10-25
$1.41List $1.77
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

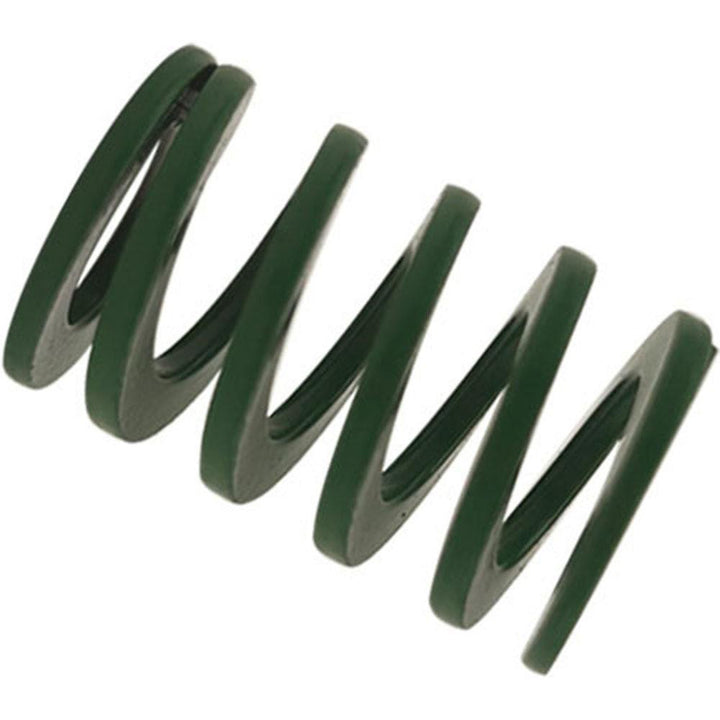

The Gibraltar DCIL10-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.5
Duty ratingLight-Duty
Free length in1
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5000
Maximum deflection load lb35.00
Maximum deflection load n155.75
Rod diameter in3/16
Spring rate70.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5197
Wire shapeTrapezoidal
