Gibraltar
Die Spring - Gibraltar DCIL10-305
MFR# DCIL10-305
$8.15List $10.23
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

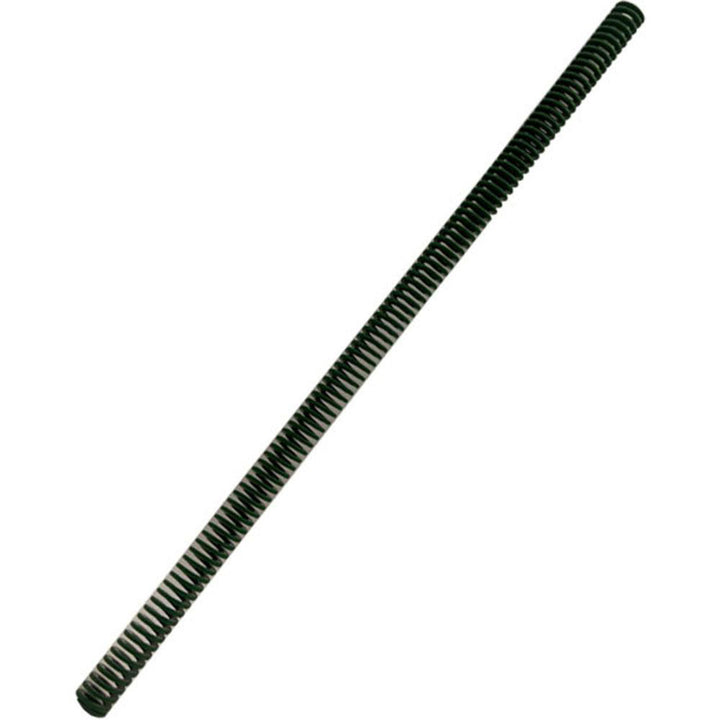

The Gibraltar DCIL10-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load6.93
Duty ratingLight-Duty
Free length in12
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection6.9300
Maximum deflection load lb41.00
Maximum deflection load n182.45
Rod diameter in3/16
Spring rate6.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load6.9213
Wire shapeTrapezoidal
