Gibraltar

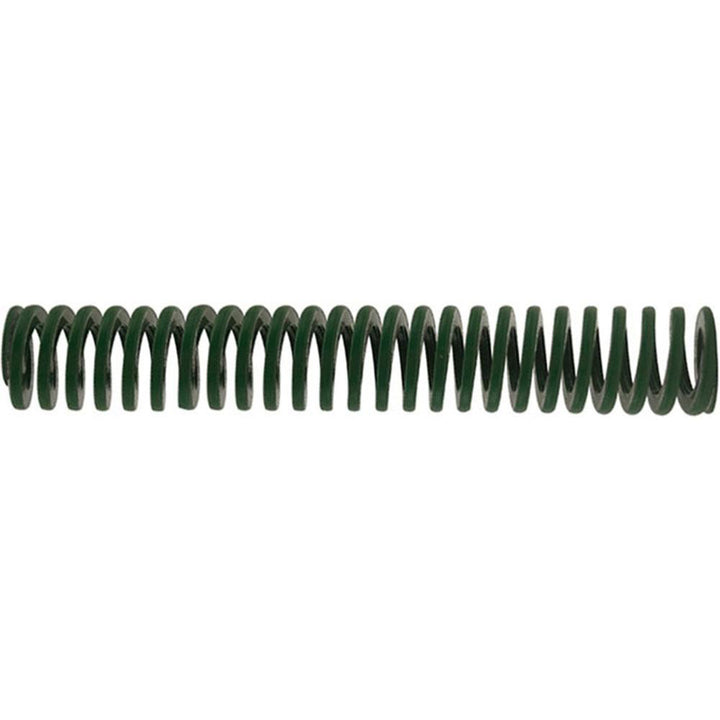

Die Spring - Gibraltar DCIL10-76
MFR# DCIL10-76
$2.26List $2.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL10-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.71
Duty ratingLight-Duty
Free length in3
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.7100
Maximum deflection load lb41.00
Maximum deflection load n182.45
Rod diameter in3/16
Spring rate24.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.7165
Wire shapeTrapezoidal
