Gibraltar

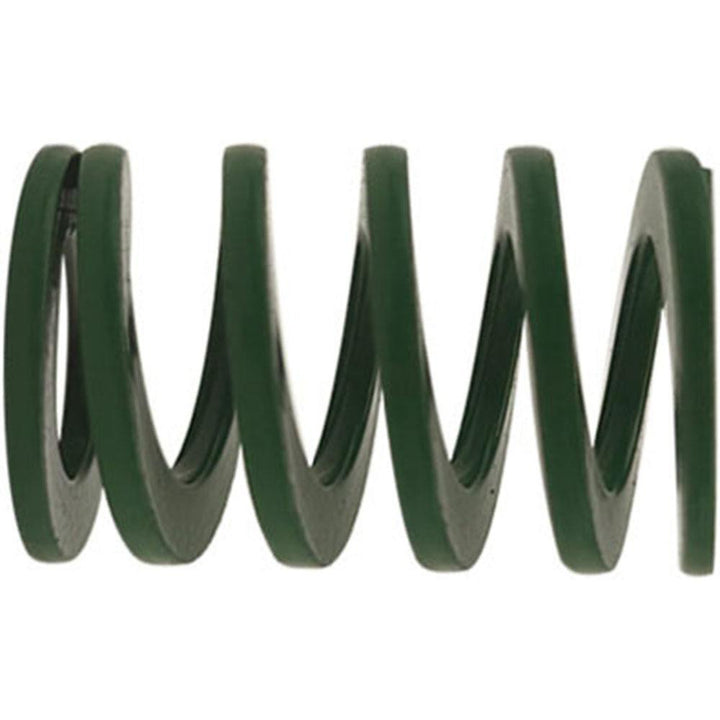

Die Spring - Gibraltar DCIL12.5-25
MFR# DCIL12.5-25
$1.53List $1.91
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL12.5-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.62
Duty ratingLight-Duty
Free length in1
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6200
Maximum deflection load lb66.00
Maximum deflection load n293.70
Rod diameter in9/32
Spring rate106.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6339
Wire shapeTrapezoidal
