Gibraltar

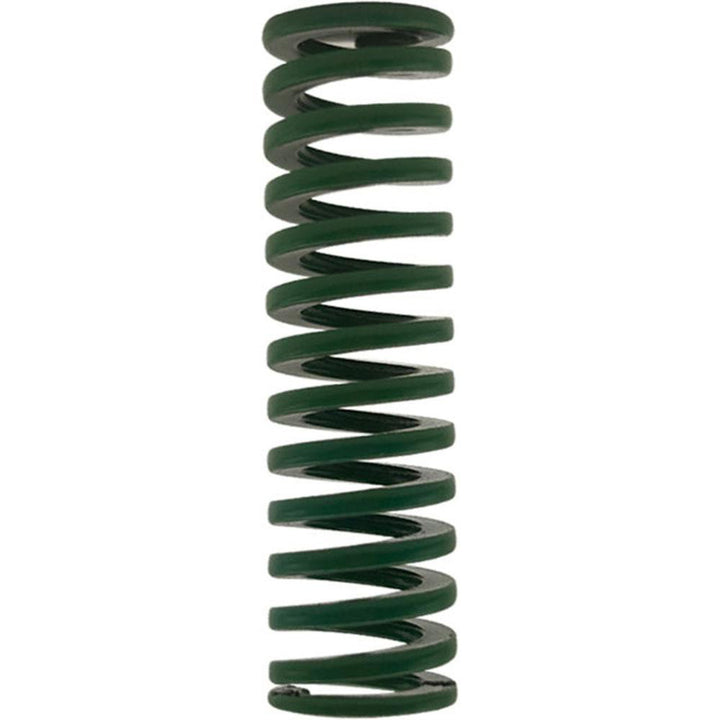

Die Spring - Gibraltar DCIL12.5-44
MFR# DCIL12.5-44
$2.20List $2.77
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL12.5-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.16
Duty ratingLight-Duty
Free length in1-3/4
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.1600
Maximum deflection load lb74.00
Maximum deflection load n329.30
Rod diameter in9/32
Spring rate64.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.1791
Wire shapeTrapezoidal
