Gibraltar
Die Spring - Gibraltar DCIL16-102
MFR# DCIL16-102
$3.94List $4.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

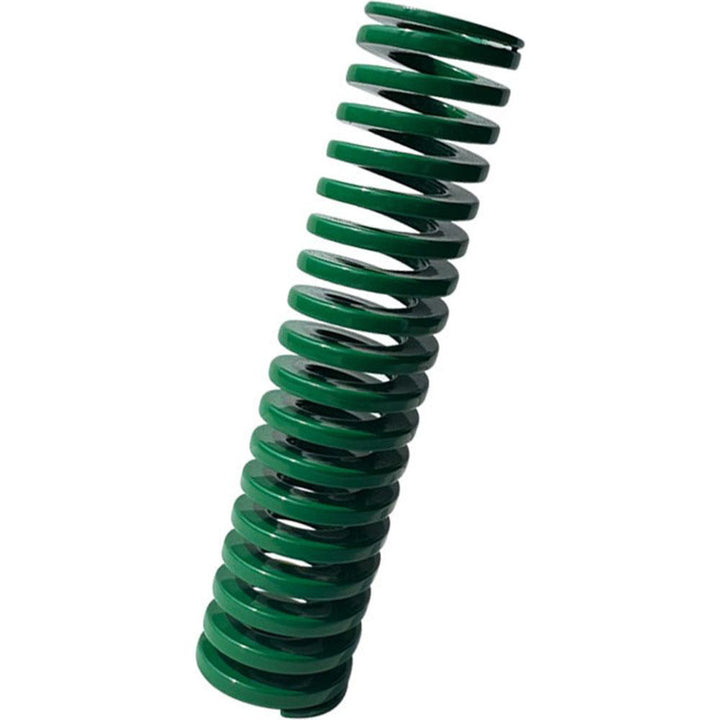

The Gibraltar DCIL16-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.52
Duty ratingLight-Duty
Free length in4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.5200
Maximum deflection load lb109.00
Maximum deflection load n485.05
Rod diameter in11/32
Spring rate43.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.5079
Wire shapeTrapezoidal
