Gibraltar

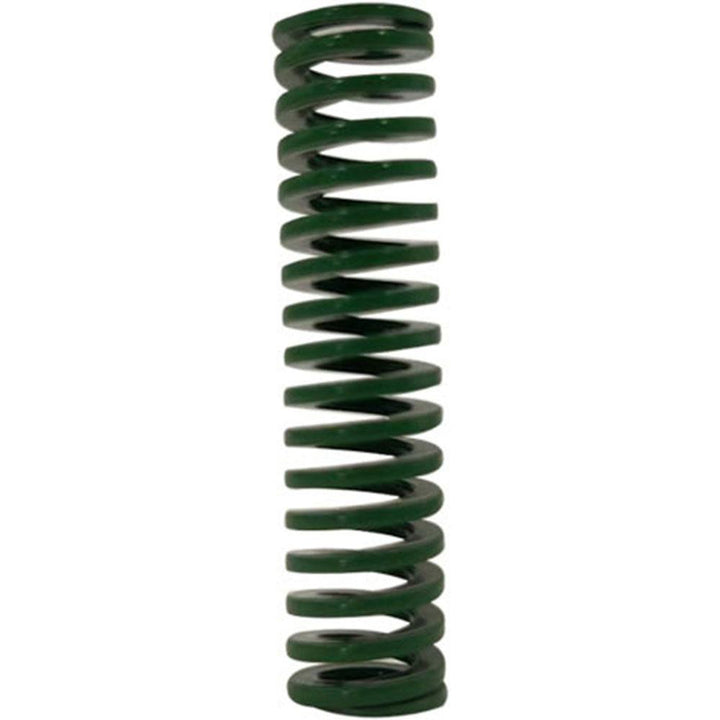

Die Spring - Gibraltar DCIL16-51
MFR# DCIL16-51
$2.26List $2.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL16-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.19
Duty ratingLight-Duty
Free length in2
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.1900
Maximum deflection load lb106.00
Maximum deflection load n471.70
Rod diameter in11/32
Spring rate89.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.1850
Wire shapeTrapezoidal
