Gibraltar
Die Spring - Gibraltar DCIL20-114
MFR# DCIL20-114
$5.06List $6.36
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

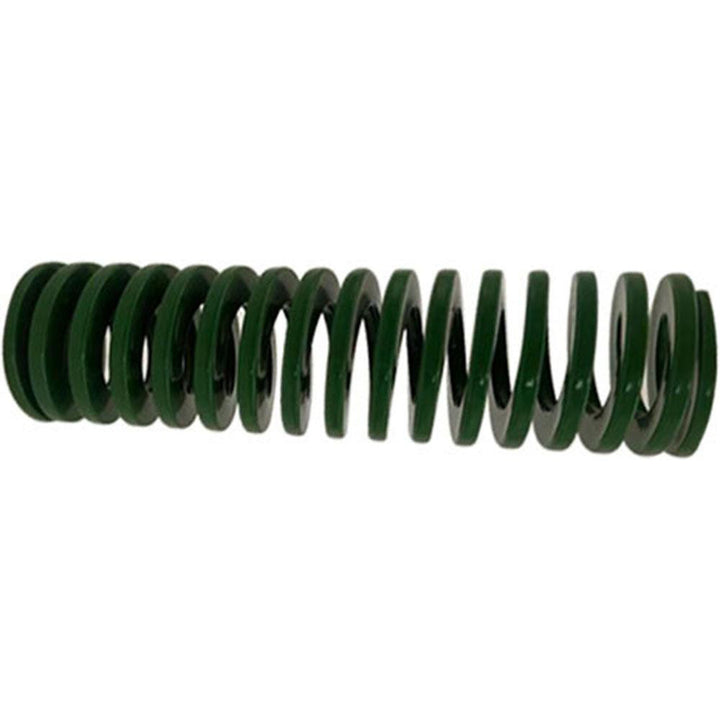

The Gibraltar DCIL20-114 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.57
Duty ratingLight-Duty
Free length in4-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.5700
Maximum deflection load lb161.00
Maximum deflection load n716.45
Rod diameter in3/8
Spring rate63.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.5472
Wire shapeTrapezoidal
