Gibraltar
Die Spring - Gibraltar DCIL20-152
MFR# DCIL20-152
$7.20List $9.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

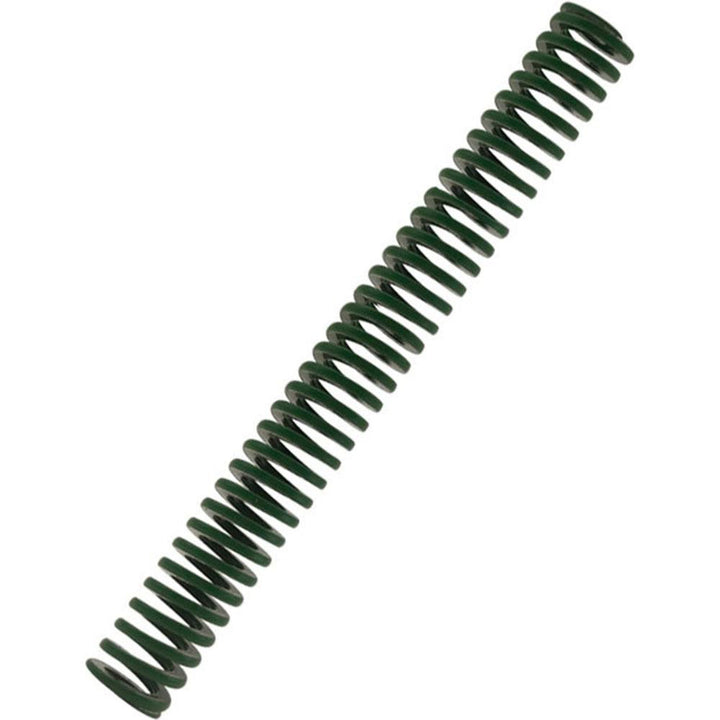

The Gibraltar DCIL20-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load3.19
Duty ratingLight-Duty
Free length in6
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection3.1900
Maximum deflection load lb138.00
Maximum deflection load n614.10
Rod diameter in3/8
Spring rate43.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load3.2087
Wire shapeTrapezoidal
