Gibraltar

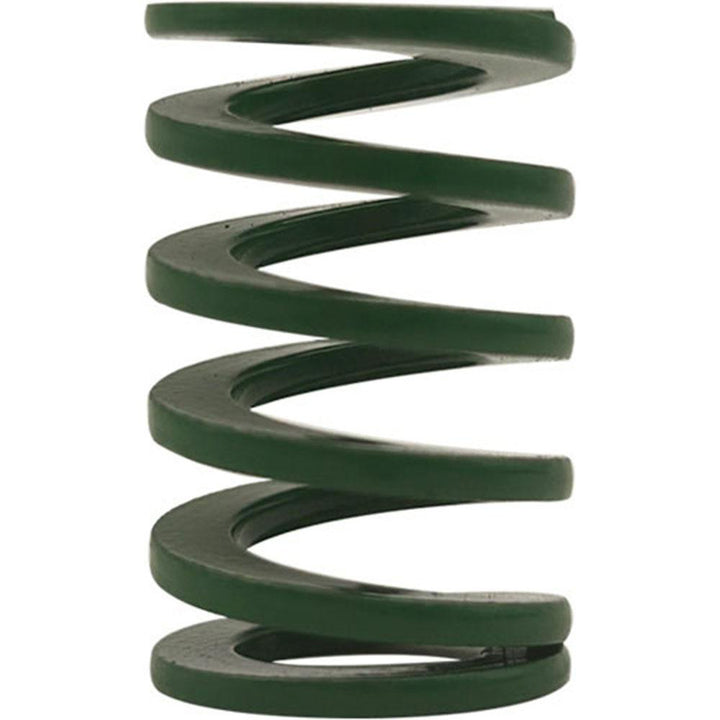

Die Spring - Gibraltar DCIL20-25
MFR# DCIL20-25
$2.61List $3.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL20-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.53
Duty ratingLight-Duty
Free length in1
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5300
Maximum deflection load lb167.00
Maximum deflection load n743.15
Rod diameter in3/8
Spring rate316.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5433
Wire shapeTrapezoidal
