Gibraltar

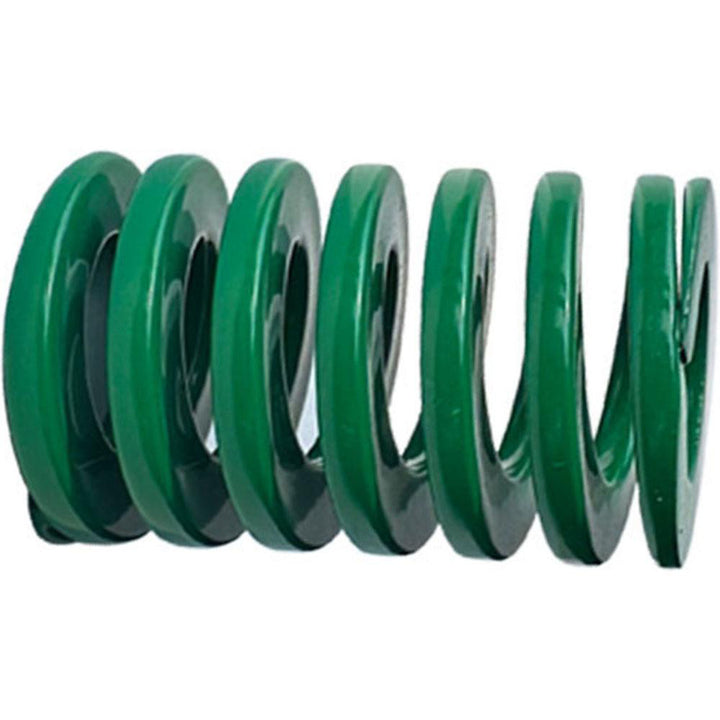

Die Spring - Gibraltar DCIL20-38
MFR# DCIL20-38
$2.98List $3.75
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL20-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.81
Duty ratingLight-Duty
Free length in1-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8100
Maximum deflection load lb160.00
Maximum deflection load n712.00
Rod diameter in3/8
Spring rate196.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8189
Wire shapeTrapezoidal
