Gibraltar

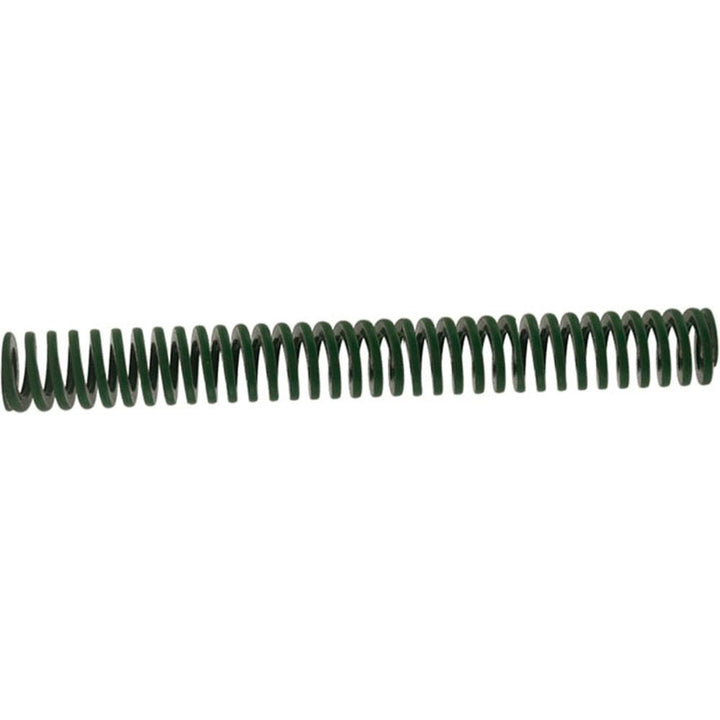

Die Spring - Gibraltar DCIL25-152
MFR# DCIL25-152
$7.89List $9.90
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load3.15
Duty ratingLight-Duty
Free length in6
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection3.1500
Maximum deflection load lb245.00
Maximum deflection load n1090.25
Rod diameter in1/2
Spring rate78.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load3.1693
Wire shapeTrapezoidal
