Gibraltar

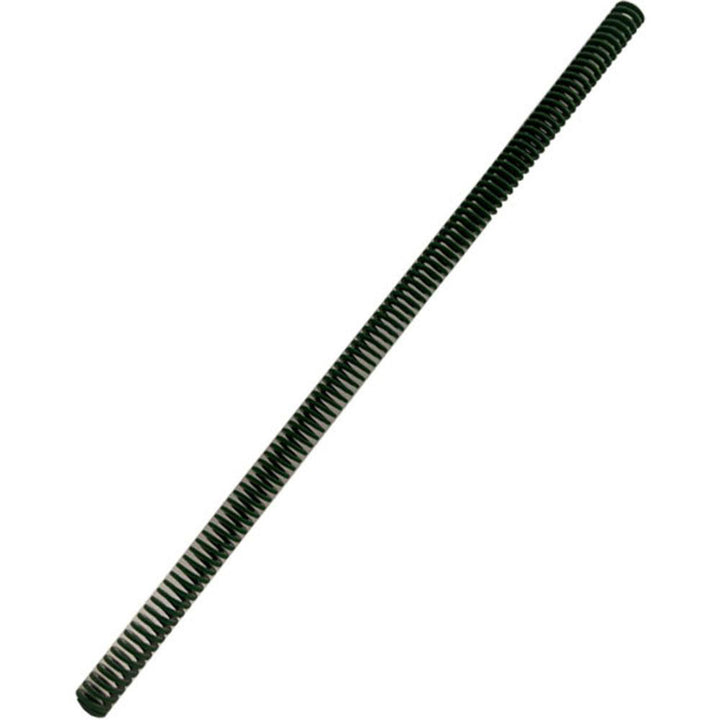

Die Spring - Gibraltar DCIL25-305
MFR# DCIL25-305
$15.02List $18.85
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load6.4
Duty ratingLight-Duty
Free length in12
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection6.4000
Maximum deflection load lb247.00
Maximum deflection load n1099.15
Rod diameter in1/2
Spring rate39.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load6.3937
Wire shapeTrapezoidal
