Gibraltar

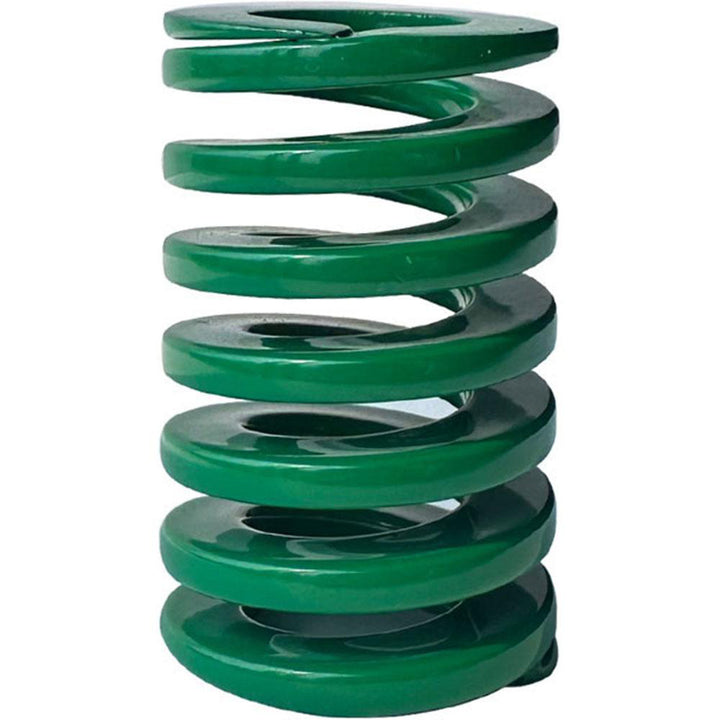

Die Spring - Gibraltar DCIL25-44
MFR# DCIL25-44
$3.85List $4.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.94
Duty ratingLight-Duty
Free length in1-3/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9400
Maximum deflection load lb288.00
Maximum deflection load n1281.60
Rod diameter in1/2
Spring rate307.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9547
Wire shapeTrapezoidal
