Gibraltar

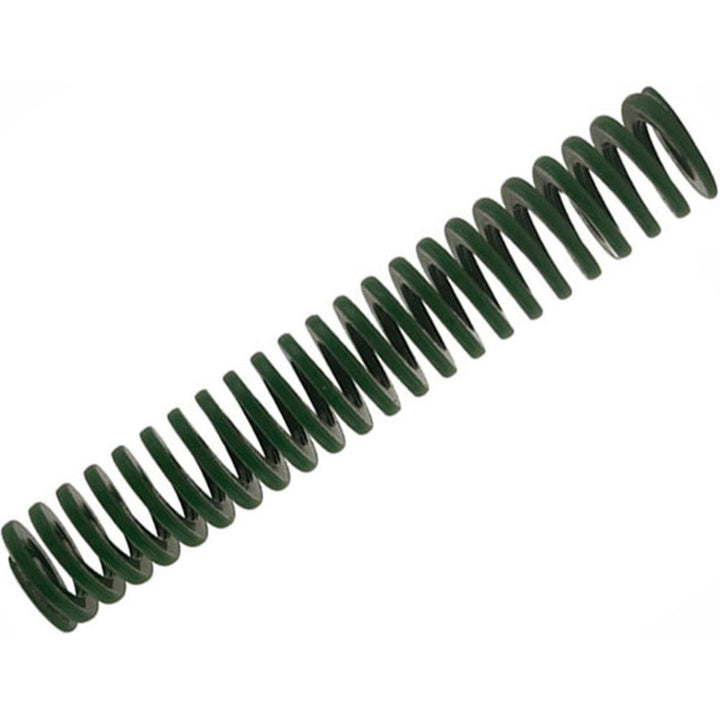

Die Spring - Gibraltar DCIL50-254
MFR# DCIL50-254
$48.77List $61.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL50-254 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load6.33
Duty ratingLight-Duty
Free length in10
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection6.3300
Maximum deflection load lb1289.00
Maximum deflection load n5736.05
Rod diameter in1
Spring rate204.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load6.3307
Wire shapeTrapezoidal
