Gibraltar

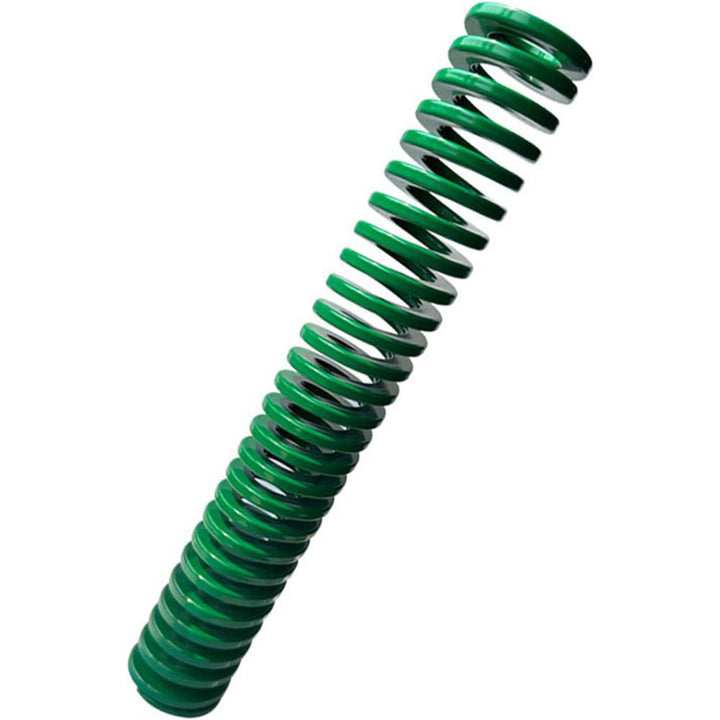

Die Spring - Gibraltar DCIL50-305
MFR# DCIL50-305
$51.35List $64.45
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL50-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load7.18
Duty ratingLight-Duty
Free length in12
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection7.1800
Maximum deflection load lb1097.00
Maximum deflection load n4881.65
Rod diameter in1
Spring rate153.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load7.1732
Wire shapeTrapezoidal
