Gibraltar
Die Spring - Gibraltar DCIM10-25
MFR# DCIM10-25
$1.47List $1.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

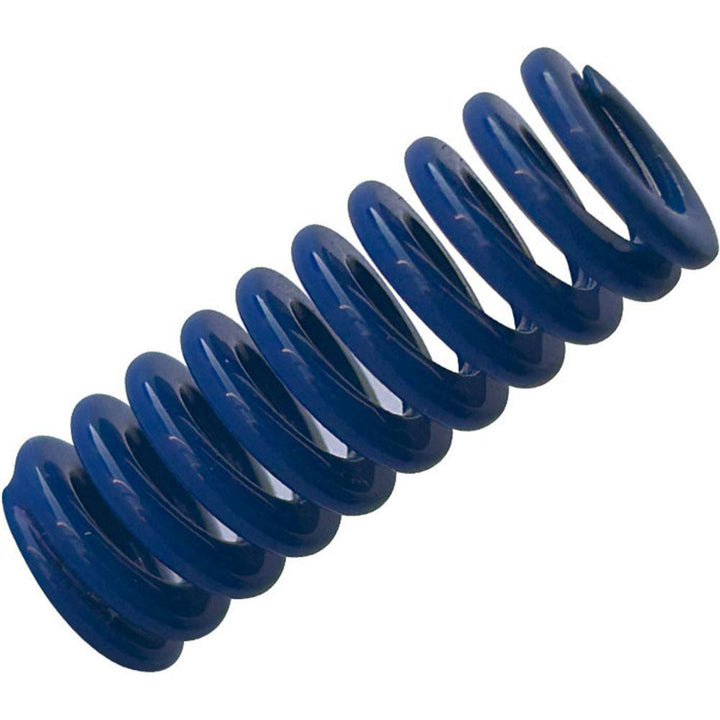

The Gibraltar DCIM10-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.47
Duty ratingMedium-Duty
Free length in1
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.4700
Maximum deflection load lb42.00
Maximum deflection load n186.90
Rod diameter in3/16
Spring rate89.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.4882
Wire shapeTrapezoidal
