Gibraltar

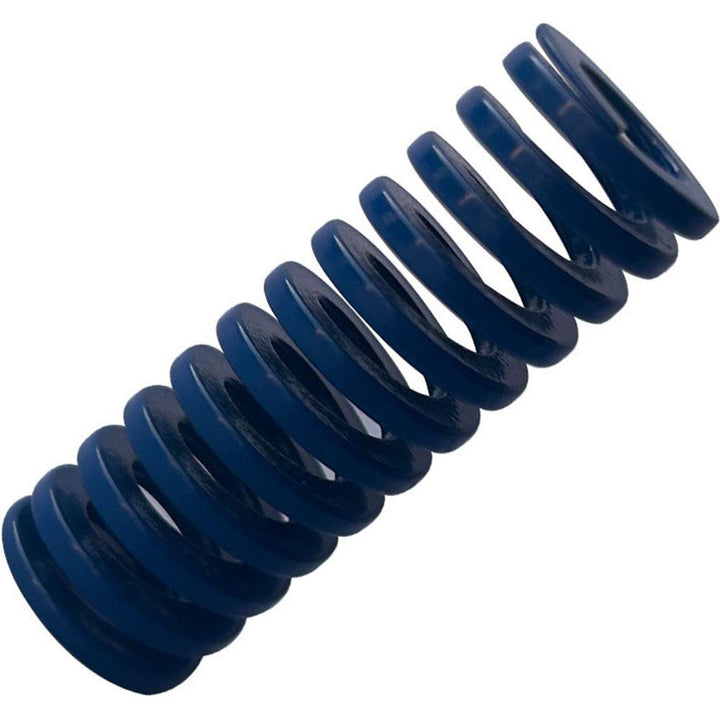

Die Spring - Gibraltar DCIM12.5-44
MFR# DCIM12.5-44
$2.24List $2.81
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM12.5-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.91
Duty ratingMedium-Duty
Free length in1-3/4
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9100
Maximum deflection load lb82.00
Maximum deflection load n364.90
Rod diameter in9/32
Spring rate91.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9232
Wire shapeTrapezoidal
