Gibraltar

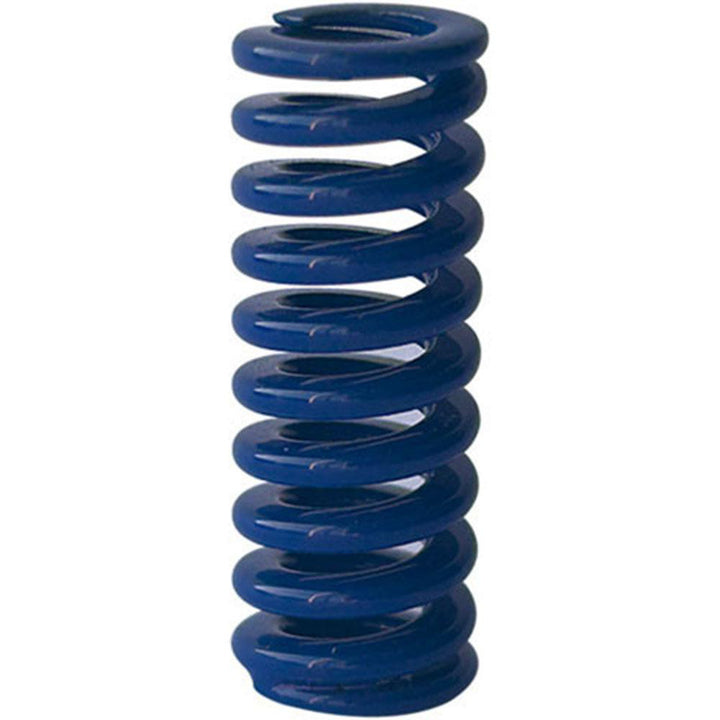

Die Spring - Gibraltar DCIM16-25
MFR# DCIM16-25
$2.03List $2.55
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM16-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.46
Duty ratingMedium-Duty
Free length in1
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.4600
Maximum deflection load lb145.00
Maximum deflection load n645.25
Rod diameter in11/32
Spring rate318.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.4724
Wire shapeTrapezoidal
