Gibraltar

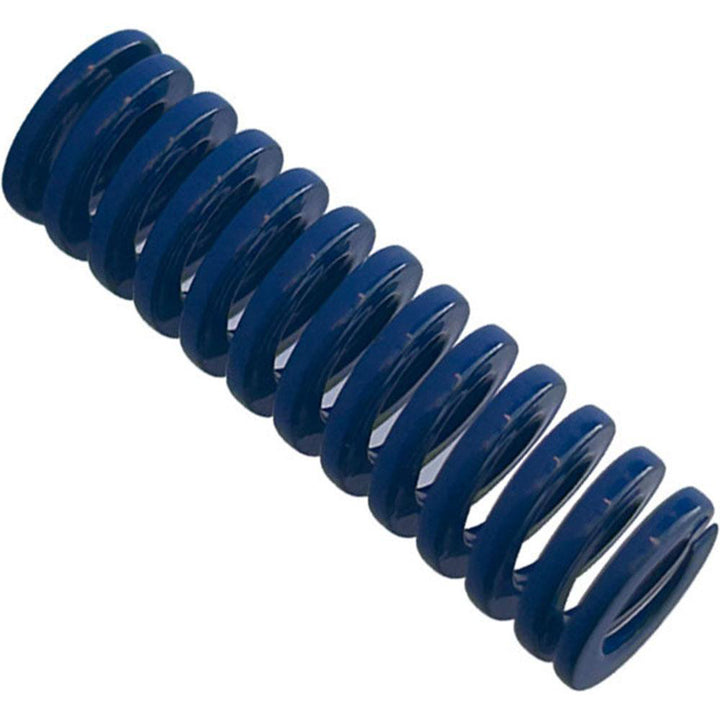

Die Spring - Gibraltar DCIM16-32
MFR# DCIM16-32
$2.24List $2.81
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM16-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.56
Duty ratingMedium-Duty
Free length in1-1/4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5600
Maximum deflection load lb128.00
Maximum deflection load n569.60
Rod diameter in11/32
Spring rate228.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5492
Wire shapeTrapezoidal
