Gibraltar

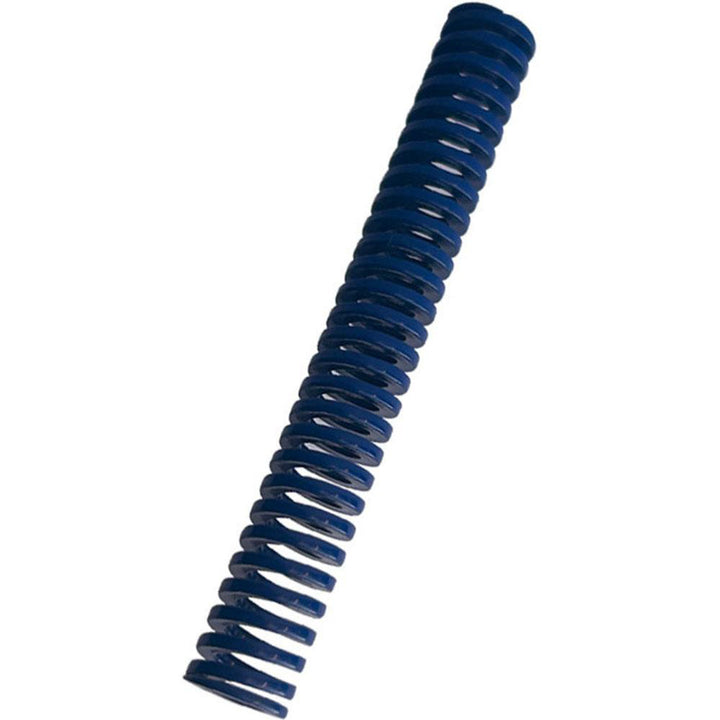

Die Spring - Gibraltar DCIM20-76
MFR# DCIM20-76
$4.38List $5.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM20-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.22
Duty ratingMedium-Duty
Free length in3
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.2200
Maximum deflection load lb179.00
Maximum deflection load n796.55
Rod diameter in3/8
Spring rate147.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.2283
Wire shapeTrapezoidal
